UNI-T UTI120S High Resolution Thermal Imaging Camera

(2 customer reviews)

Please see here for a new upgraded model.

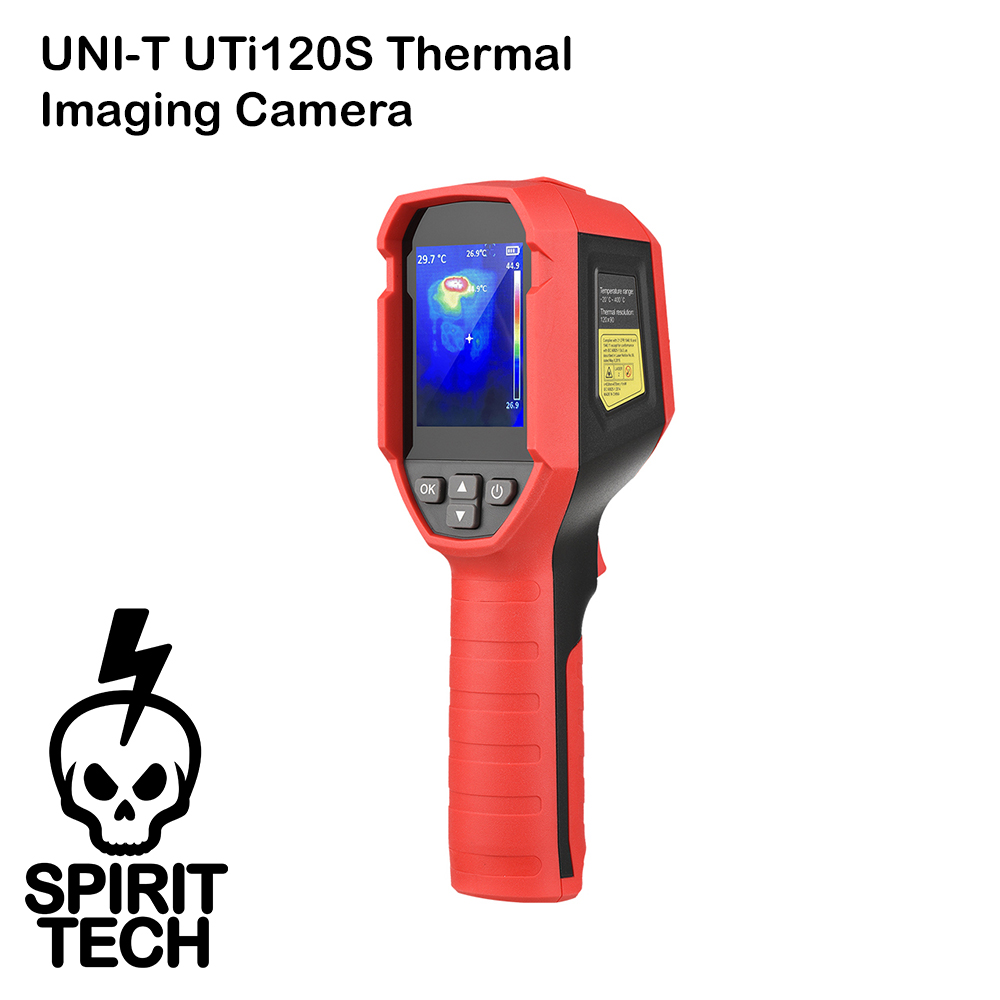

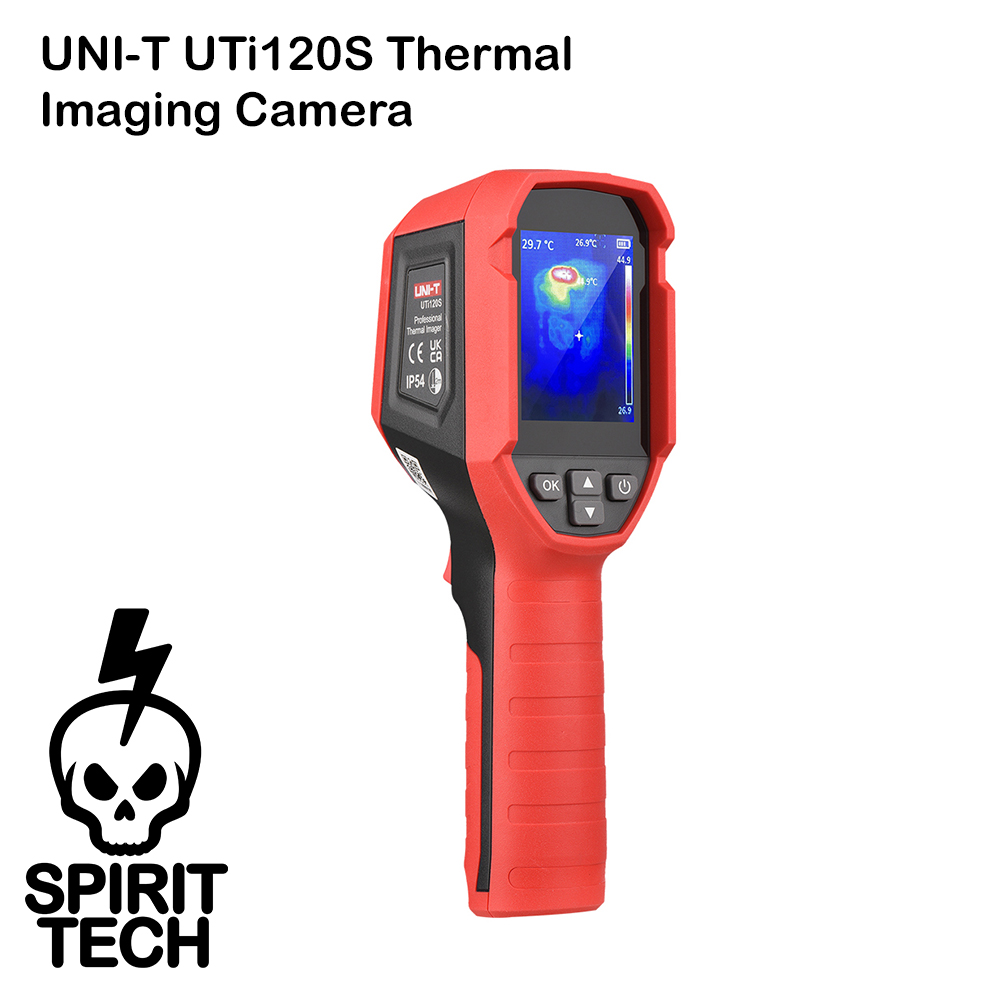

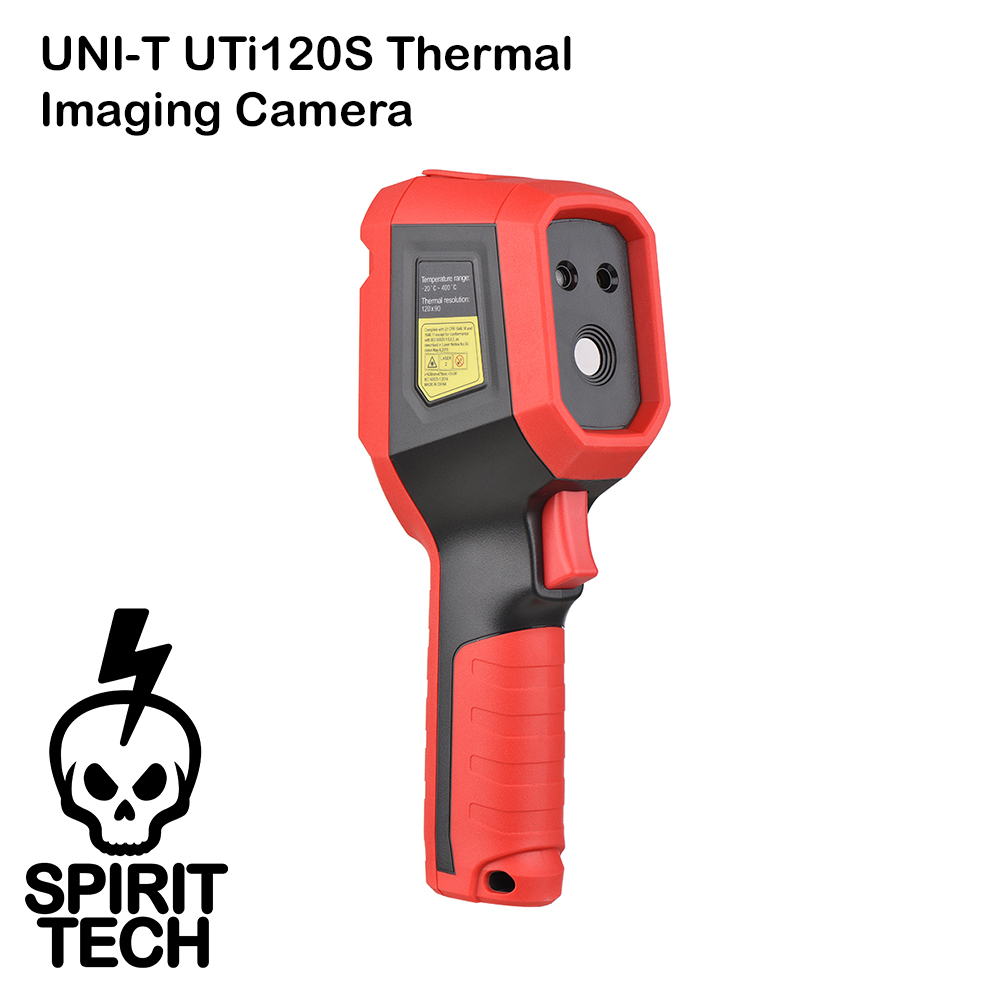

Hand-held high resolution thermal imaging camera with built-in laser pointer and LED torch with an internal rechargeable battery.

Take temperature measurements of large areas by simply looking through a camera. Temperature points are displayed on integrated LCD screen. Photos can be captured for later analysis by pulling the trigger.

Base-mounted screw allows for setting on a tripod, and with the integrated audible alarm, can alert you of high or low temperatures in an area.

Includes padded box, wrist strap, USB Type-C cable for charging, and a 16GB MicroSD Card for capturing images.

Pay in 4 interest-free payments. Available for orders between $30 - $2,000
Repay from $10/week
*Australia Only
Pay in 4 interest-free payments. Available for orders between $30 - $2,000
*Australia Only

Product Description

High thermal image resolution of 120 × 90 px.

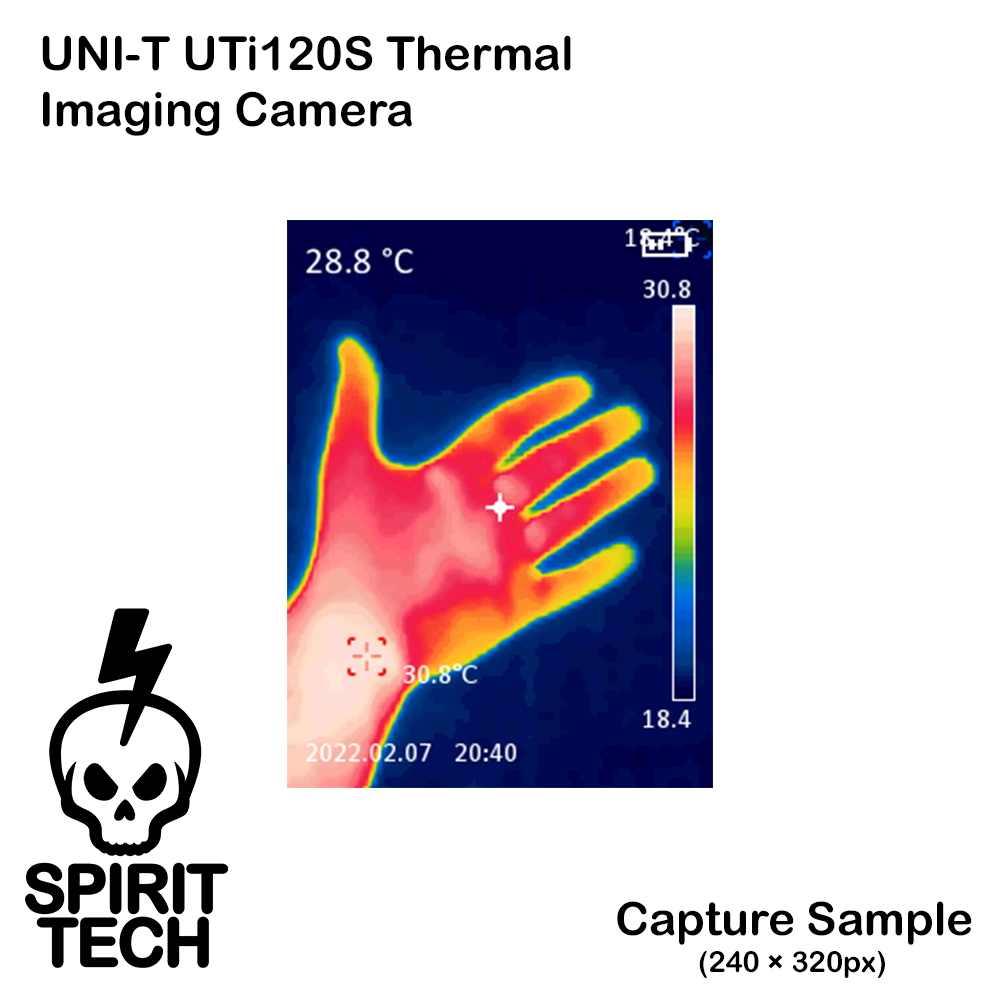

Captured images are 240 × 320px in size, and mirror screen contents.

Measurement units can be displayed in either °C or °F.

Thermal images can be displayed using different colour palettes.

Built-in laser pointer can be used to point out areas of interest, and white LED torch helps when operating other devices.

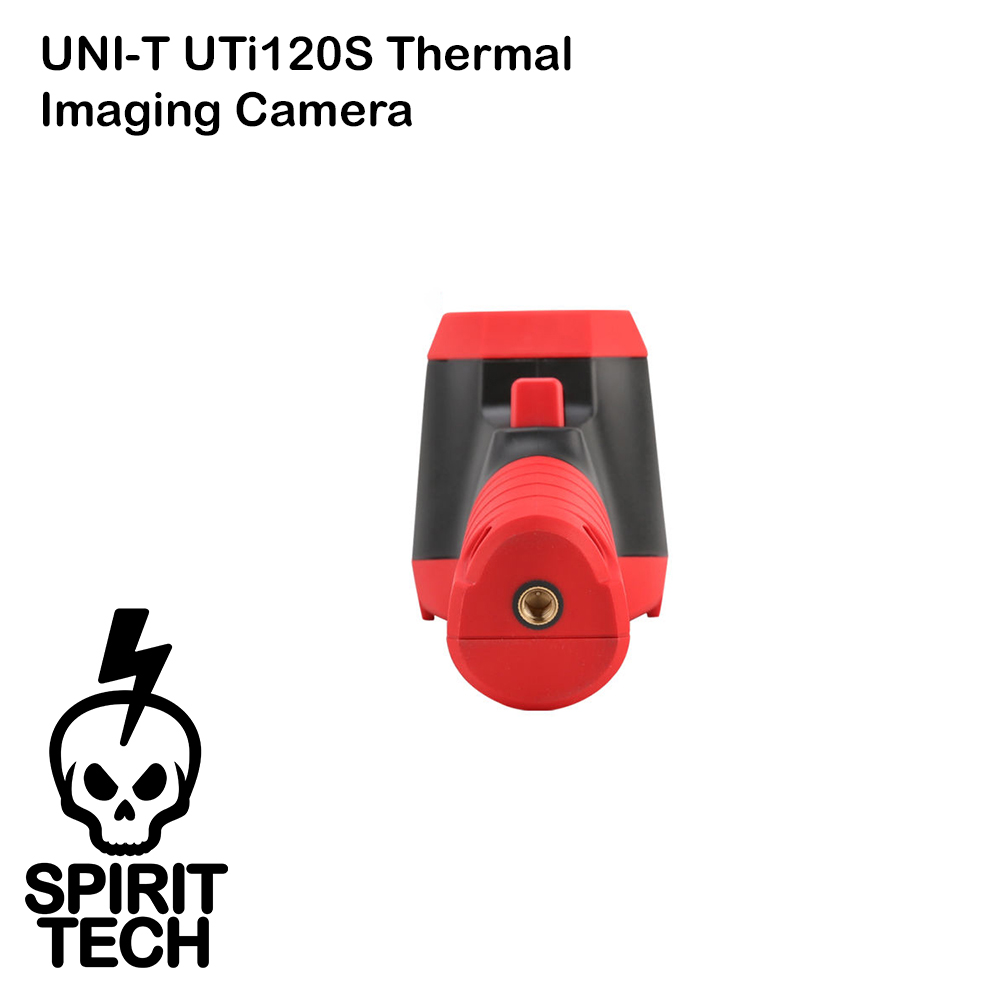

Base-mounted screw allows for setting in a static location on top of a tripod or other mount.

An audible alarm can be set to alert you when temperatures in frame are above or below a set range.

Rugged design with a 2 metre drop resistance rating and an IP54 ingress rating allowing for use in wet or dusty environments.

Main Features:

  • High thermal image resolution of 120 × 90 px
  • Built-in laser pointer and white LED torch
  • Base-mounted ¼” screw allows for setting on a tripod
  • Built-in 2600mAh rechargeable Lithium-ion battery with USB Type-C charging
  • Rugged and water-resistant design
  • Ability to capture photos to an installed SD card with the handle trigger (16GB included)
  • Audible and Visual alarm can be set to alert when temperatures in frame are above or below a set range

Kit includes:

  • UTI120S thermal imaging camera
  • Padded storage box
  • Wrist Strap
  • 1Metre USB Tpe-C cable for charging and transferring images
  • 16GB MicroSD card

Additional Information

Weight 570 g
Dimensions 245 × 150 × 95 mm
Material

Rubber, Plastic

Model

UTI120S

Battery Powered

Yes

Rechargable

Yes

Batteries

Internal, Lithium Ion

Battery Capacity

2600mAh

Batteries Included

Yes

Cable Length

1 Metre

Connector Type

USB Type-C

Emitted Light Colour

Cool White (6000-6500K)

Mount

Standard ¼" Screw

Storage Capacity

16GB

Sensor

Uncooled infrared focal plane thermal imaging sensor 120×90px

Field of View

50°H × 38°V

Temperature Range

-20 ~ 400°C

Spectral Bandwidth

8 ~ 14 µm

Measuring Resolution

0.1°C

Accuracy

±2% or ±2.0°C

Thermal Image Resolution

120 × 90 px

Display

2.4" TFT

Display Resolution

320 × 240 px

IP Rating

IP54

Drop resistance

2 metre

Country of Origin

China
