Thermal Imaging Camera

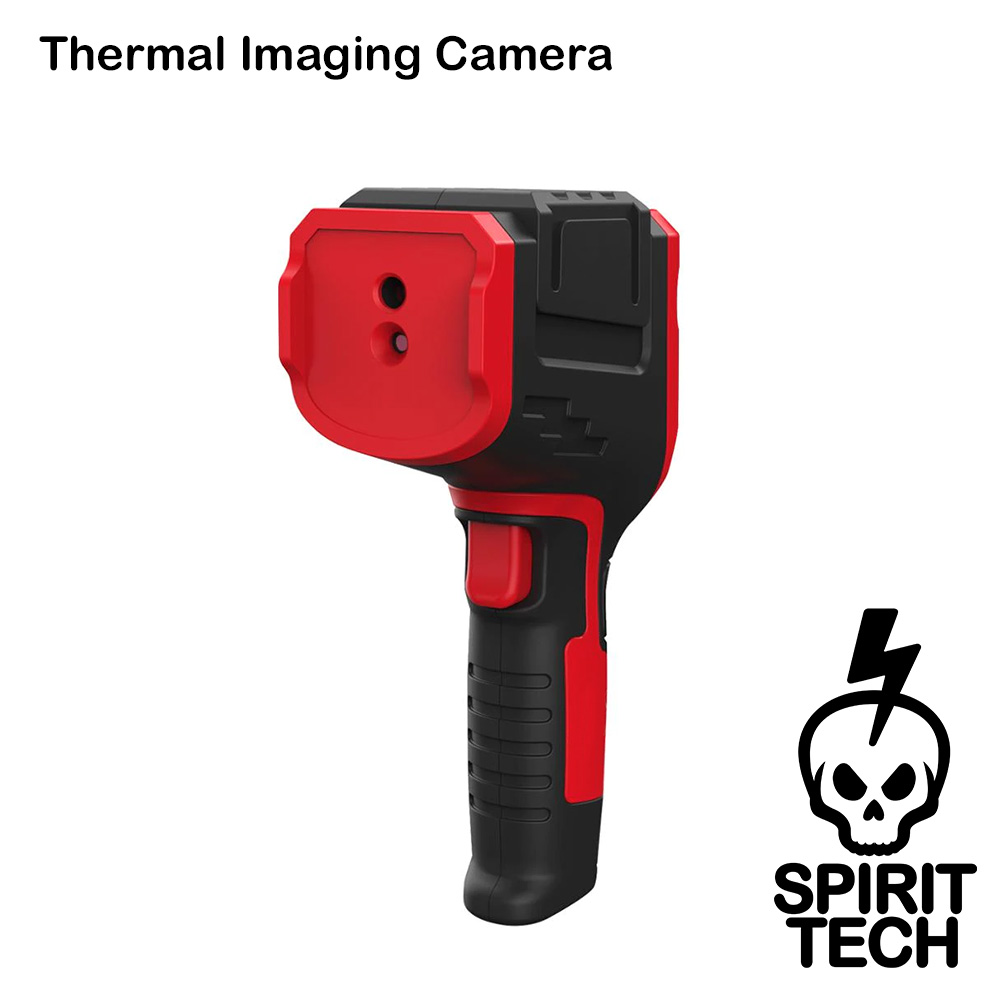

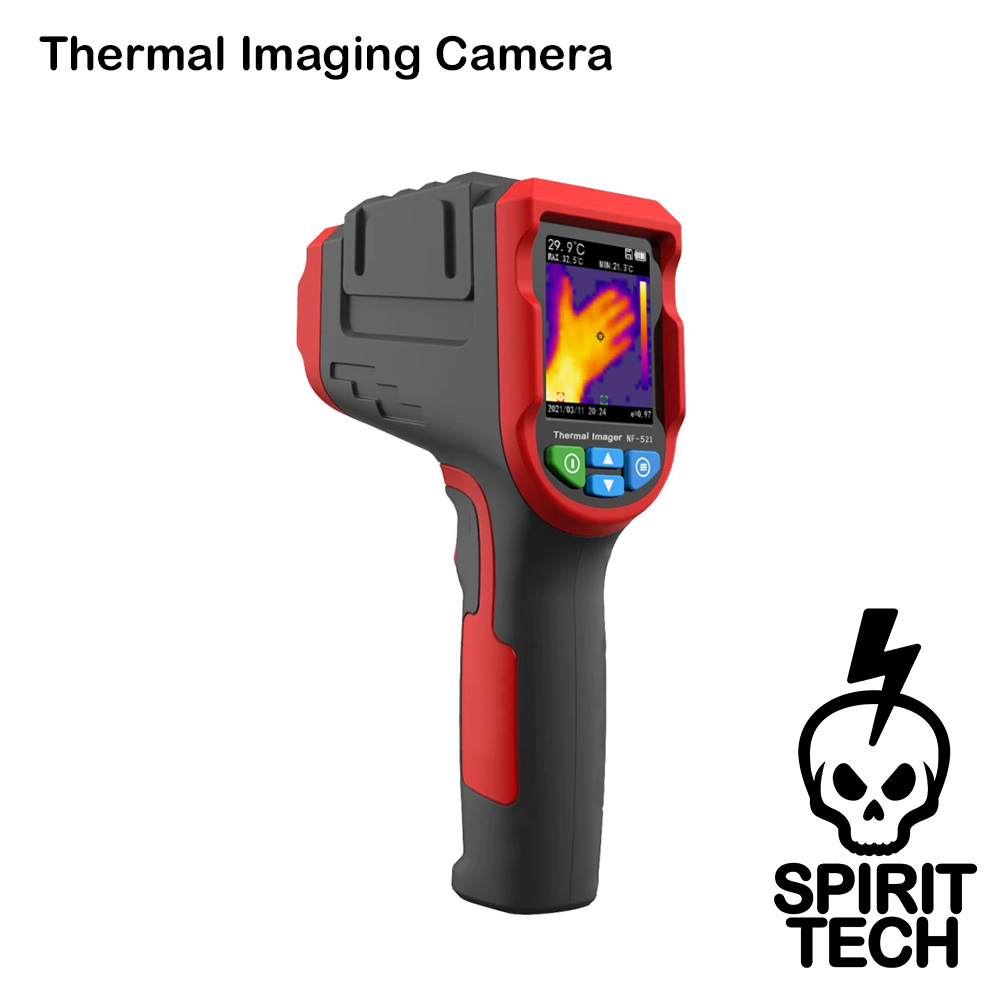

Hand-held thermal imaging camera with internal rechargeable battery.

Take temperature measurements of large areas by simply looking through a camera. Temperature is displayed on integrated LCD screen. Photos can be captured for later analysis by pulling the trigger.

Includes a built-in reference visible light camera that can be combined with the thermal image.

Includes carry bag, Micro-USB cable for charging, and a 16GB MicroSD Card for capturing images.

No longer available

Want to be notified when this product is back in stock?

Pay in 4 interest-free payments. Available for orders between $30 - $2,000
Repay from $10/week
*Australia Only
Pay in 4 interest-free payments. Available for orders between $30 - $2,000
*Australia Only

Product Description

Thermal resolution is 32 × 32 px, and regular colour (for reference images) is 240 × 320 px.

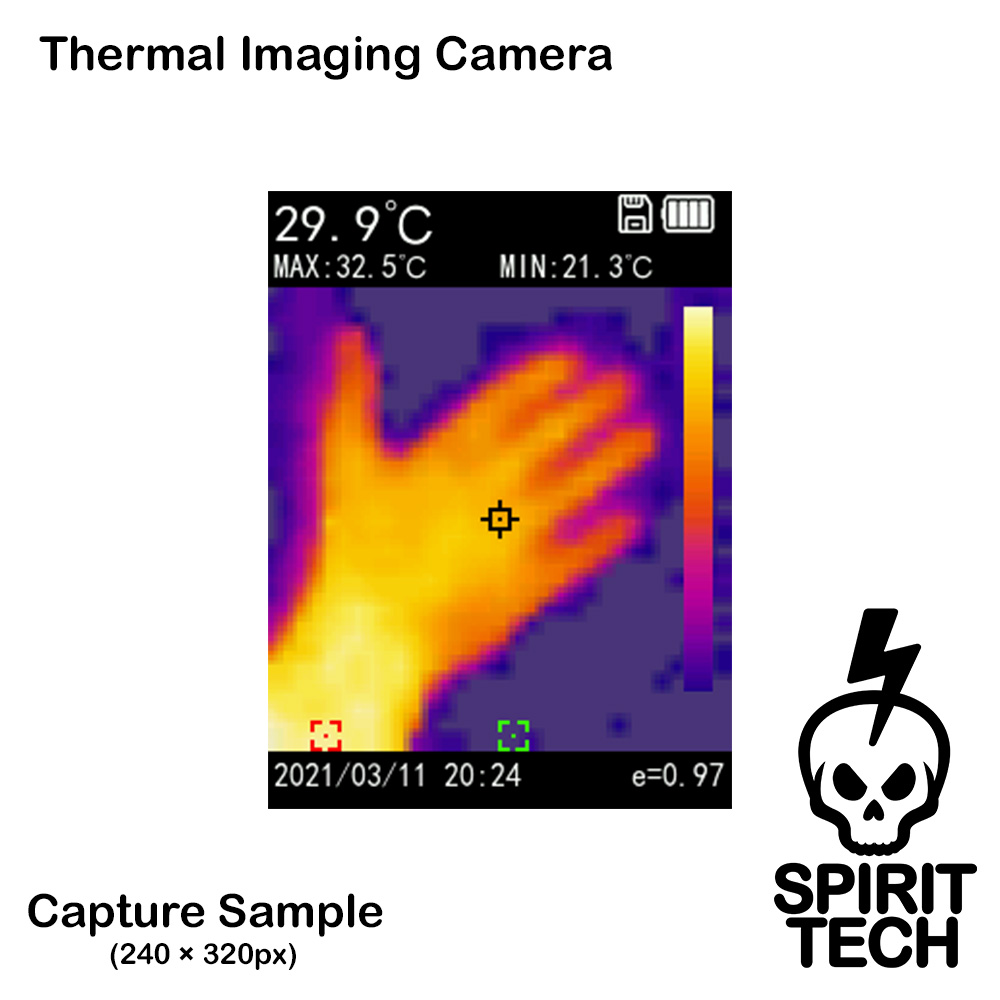

Captured images are 240 × 320px in size. Both the display contents containing the thermal image and readings, and regular colour image for reference are captured at the same time.

Measurement units can be displayed in either °C, °F, or K.

Thermal images can be displayed using different colour palettes, and can be combined in different ways with the regular colour camera.

An alarm (silent only) can be set to show when temperatures in frame are above or below a set range.

Main Features:

  • Thermal image resolution of 32 × 32 px
  • Built-in colour visible-light camera with resolution of 240 × 320 px that can be combined with the thermal image in different ways for reference
  • Built-in 2600mAh rechargeable Lithium-ion battery
  • Ability to capture photos to an installed SD card with the handle trigger (16GB included)
  • Visual alarm shows when temperatures in frame are above or below a set range

Kit includes:

  • Thermal imaging camera
  • Carry bag
  • 1Metre Micro-USB cable for charging
  • 16GB MicroSD card

Additional Information

Weight 520 g
Dimensions 240 × 140 × 80 mm




Battery Powered




Connector Type

USB Micro-B


Internal, Lithium Ion

Battery Capacity


Thermal Image Resolution

32 × 32 px

Visible Image Resolution

240 × 320 px

Storage Capacity


Display Resolution

320 × 240 px


2.4" TFT

Spectral Bandwidth

8 ~ 14 µm

Measuring Range

-10 ~ 400°C

Measuring Resolution



±2% or ±2.0°C
